Epic Vision Horizontal Floor Model System - MACRO Video Comparator - Motorized with G1

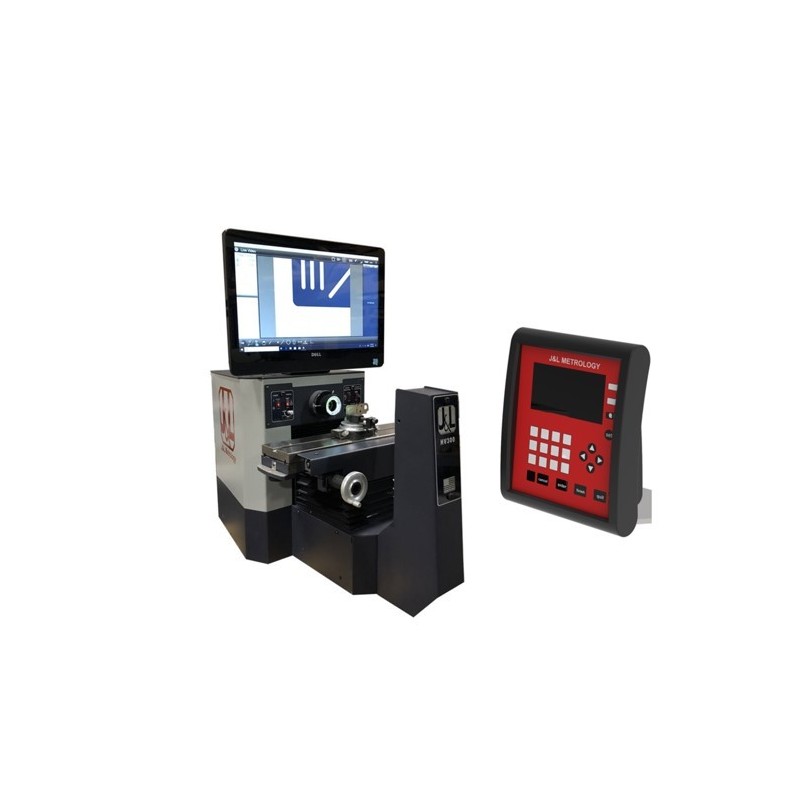

J&L Epic Vision EVHF-Macro-G1 Floor Model Horizontal Video Comparator with G1 Readout

It's a Comparator. It's a Video Measurement System. It's a 4K Inspection Microscope - All in One!

Experience the ultimate in clarity and detail, coupled with the convenience of autofocus. The integrated LED lighting ensures optimal visibility, while the image capture feature captures every intricate detail with ease. What sets us apart is the seamless integration of on-screen measurement tools and our G1 Geometric Readout, enabling precise measurements and stage-based measurement. The EVHF includes our signature 16" x 10" Steel Stage, Suberb Full Color Optics, on-screen and stage based measurement capability and image capture. This affordable workstation includes our G1 digital readout for easy to use geometric measurement capabilities. Elevate your work experience with unparalleled technology and convenience. Invest in precision, invest in the J&L EVHF Horizontal Video Comparator.

4K Macro Wide-Field Lens (5x to 50x Zoom): Capture highly detailed images crucial for inspection and quality control. The autofocus feature ensures sharp, clear images, perfect for documenting fine details during analysis or troubleshooting. Seamless Image Capture: Effortlessly document images for reports or presentations, streamlining workflows and improving efficiency.

Powerful On-Screen and Stage-Based Measurement Tools: Integrated software or hardware provides accurate on-screen measurements, while stage-based controls ensure precise object positioning for complex measurement tasks.

Robust Construction: Built with a stable cast iron work surface, ensuring durability and stability for accurate measurements, even in the most demanding environments.

Large Measurement Motorized Envelope: With a 12" x 10" x 2.5" measurement envelope, the EVHF accommodates a wide variety of parts and components, enhancing its versatility for numerous applications. X axis is upgradeable to 16" and can be CNC controlled for automated measurements.

Heavy Weight Capacity - 500 lbs Standard with Upgrades to 12000 lbs or Extreme Capacity of 2800 lbs

Integrated LED Lighting: High-intensity, adjustable LED lighting eliminates shadows and glare, providing consistent illumination to maintain precise measurement conditions.G1 Geometric Readout: Offers precise geometric measurements such as angles and distances directly from on-screen data, removing manual errors and ensuring data integrity.

Built in the USA with Robust Warranties:

Backed by a 2-year warranty on mechanical components and a 1-year warranty on electronics, the G1 Macro System is built with high-quality components for long-term reliability, even in the most demanding environments.

Benefits for Engineers:

Precision and Efficiency: The 4K optics, advanced LED lighting, and precise measurement tools make the G1 Macro System indispensable for engineers who demand accuracy in inspection and measurement tasks.

Versatility in Application: Whether in R&D, manufacturing, or fieldwork, the G1's compact design and integrated tools make it R&D, manufacturing, or fieldwork, the G1's compact design and integrated tools make it adaptable to a wide range of engineering tasks, without the bulk of traditional equipment.
